Have You Experienced These Issues?
Paying for gigabit broadband but getting dial-up speeds?
Streaming TV box freezing during live broadcasts?
NAS file transfers stalling or dropping speeds?
Many blame their devices first, but the real suspect is often your Ethernet or data cable!
Let’s uncover two overlooked yet critical specs: Shielding Configuration and Wire Gauge (AWG)—and how they impact your network.
1. Shielding Configuration: Why It Matters
Electromagnetic interference (EMI) is everywhere—chargers, motors, power sources, and Wi-Fi devices all emit disruptive signals. Unshielded cables are like walking a tightrope naked: signals easily distort or disconnect.
| Type | Structure | Interference Resistance | Common Use |
|---|---|---|---|
| UTP | Unshielded | ★☆☆☆☆ | Cat5e (Home) |
| FTP | Overall foil shield | ★★★☆☆ | Cat6/6A (Shielded) |

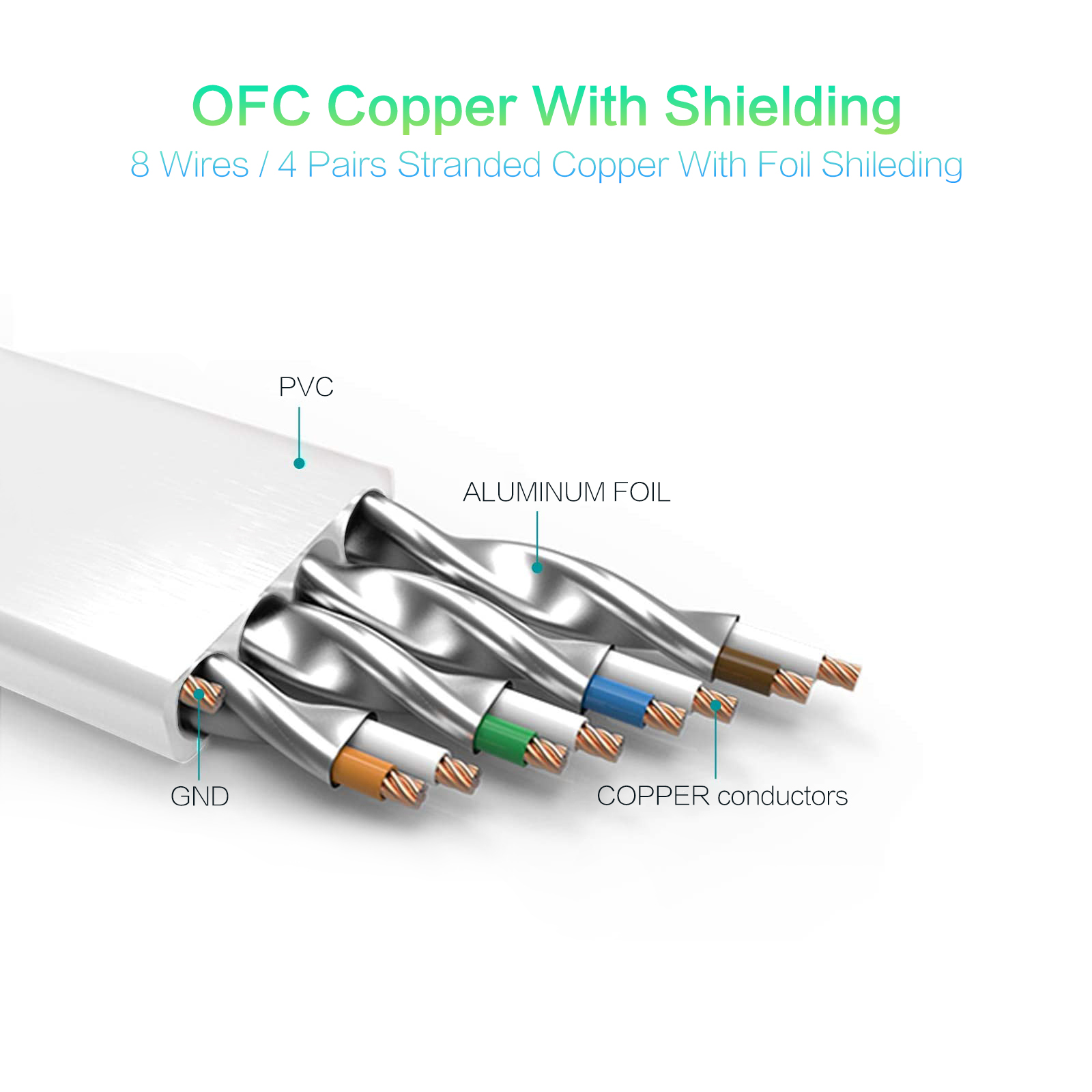

| S/FTP | Foil per pair + braided shield | ★★★★★ | Cat6A/Cat7/Cat8 (Premium) |
| SFTP | Dual-layer overall shield | ★★★★☆ | High-interference environments |
Expert Advice:
Home: UTP suffices for simple setups.
Office/Device-Dense Areas: Use FTP or S/FTP.
Data Centers, Live Streaming, AV Editing: S/FTP is essential.
2. Wire Gauge (AWG): Thinner Wires = Bigger Problems
AWG (American Wire Gauge) measures conductor thickness. Higher AWG = thinner wire = higher resistance = worse performance.
| AWG | Conductor Diameter | Performance |
|---|---|---|
| 22AWG | ≈0.64mm | Stable, high-performance (Cat8 standard) |
| 24AWG | ≈0.51mm | Home/office mainstream (Cat6 recommended) |
| 26AWG | ≈0.40mm | Acceptable for short Cat6A runs |
| 30–34AWG | Ultra-thin | Prone to overheating, speed drops, port damage! |
Why Thin Wires Fail:
High resistance: Signal degradation.
Overheating: Under sustained high-frequency data loads.
Port damage: Risk of burnout with high current.
Speed drops: Critical beyond 5 meters.
3. How to Identify Quality Cables
Check Cable Markings:
Look for labels like:
CAT6A S/FTP 24AWG 500MHz
This decodes to:
Category: Cat6A (performance standard)
Shielding: S/FTP (double-shielded)
Conductor: 24AWG pure copper
Bandwidth: 500MHz
Verify Packaging:
Material: "Bare Copper" (never CCA—Copper-Clad Aluminum).
Certifications: TIA/EIA or ISO/IEC compliance.
Avoid "Fake Cat6" or Uncertified Cables:
Cheap alternatives deliver crippled performance—using them is like having no cabling at all!
4. Expert Recommendations by Use Case
| Scenario | Recommended Cable | Key Notes |
|---|---|---|
| Home Gigabit Broadband | Cat6 UTP 24AWG | Keep away from power cables! |
| Office/NAS | Cat6A FTP/S/FTP 24AWG | Supports 10Gbps/55m; PoE-compatible |
| Gaming/Live Streaming | Cat6A/Cat7 S/FTP 23-24AWG | High-frequency EMI resistance |
| Data Centers/10GbE+ | Cat7/Cat8 S/FTP 22-23AWG | 40Gbps @ 30m; professional setup only |
Key Takeaways:
Look beyond "Cat ratings": Prioritize shielding + AWG.
EMI-heavy environments? Use S/FTP.
Long runs/high speed? Choose ≥24AWG pure copper.
A quality cable doesn’t just stabilize speeds—it protects your ports!
For Future-Proofing:
CAT6A S/FTP + 24AWG + Bare Copper or higher (Cat7/Cat8) with official certifications.
Don’t let an invisible cable throttle your entire network ecosystem.
