In today's world of stuttering video conferences, endless file transfer loading circles, and guest networks dragging down core business operations, a high-performance enterprise WiFi network is no longer a "nice-to-have" – it's "mission-critical" infrastructure for efficient work.
This solution is specifically designed for multi-floor office environments spanning 1,000 to 3,000 square meters. Centered on intelligent device networking, it delivers:
"Zero-Perception" Roaming: Move seamlessly between areas without dropped video calls or interrupted VoIP.
"Surgical-Precision" Traffic Management: Prioritize critical business applications to prevent bandwidth hogs from impacting productivity.
"Fortress-Grade" Security: Complete isolation of guest networks from corporate data, eliminating internal network penetration risks.
From equipment selection to cabling implementation, we break down how to rapidly build a "virtually invisible," highly reliable network. A truly great enterprise WiFi system should let employees forget it even exists.
Core Equipment Selection
Equipment Category | Product Recommendations | Key Specifications |
---|---|---|
SD-WAN Gateway + Controller | Cisco Catalyst 8300 Series / Aruba 7205 Controller | Integrated vEdge routing & SD-WAN, Aruba Central cloud management, supports 500+ endpoints & 100+ APs centralized control |
Core Switch | Cisco Catalyst 9300 Series / Aruba CX 6300 | 24/48 PoE+ (802.3at/bt) ports, 25G/100G uplinks, supports Dynamic Segmentation (SGT) & AI-driven QoS |
PoE Access Switch | Cisco C9200L-48P-4X / Aruba JL354A / Ruckus ICX 7150 | 12/24 PoE++ (802.3bt) ports, 30W per port, ideal for high-density AP deployments |
Internet Uplink | Cisco ISR 4400 Series / Comcast Business / VCOM PoE Series | 1Gbps Dedicated Fiber + Static IP, supports SLA guarantees (99.9% uptime) |
Patch Cable Type | VCOM NP832F | CAT8 SSTP FLAT BC 30AWG, Multi-strand pure copper, Gold plated. Suitable for industrial/enterprise use & PoE++ (e.g., cameras, high-power APs) |
Bulk Cable Type | VCOM D1606 | CAT6A SFTP 23AWG 4 pair PVC, Solid OFC, 500MHz. Excellent interference resistance, ideal for data center/high-density cabling |
Wireless AP Deployment Strategy (WiFi 6)
AP Quantity & Density
Area Type | Deployment Density | Characteristics |
---|---|---|
Open Office Area | 1 AP per 100~120㎡ | 4×4 MU-MIMO, OFDMA, supports WPA3-Enterprise & Airtime Fairness scheduling |
High-Density Meeting Room | 1 AP per 50~80㎡ | Peak rate 3.5Gbps, 16 spatial streams, optimized for video conferencing |
Guest Area | Increase by 20% in high-traffic zones | Dedicated SSID + VLAN, enable Client Isolation & Rate Limiting (20Mbps per endpoint) |
Installation Method: Ceiling/Wall mount, PoE++ (802.3bt) powered. Avoid metal obstructions. Use Ekahau heatmaps to validate coverage and eliminate dead zones.
2. Installation & Power
PoE Standard: Select 802.3at (PoE+) or 802.3bt (PoE++) based on AP model to ensure full power operation (e.g., Ruckus R750 requires PoE++).
Cable Type: CAT6A Shielded (S/FTP) cable to avoid interference for multi-gigabit uplinks.
Network Management & Configuration Recommendations
1. Unified Controller Management
Manage via Cisco DNA Center or Aruba Central cloud platforms for:
Automatic RF Optimization (AirMatch / RF optimization).
Visual endpoint traffic analysis.
Location-based policy deployment (e.g., P2P throttling in meeting rooms).
2. VLAN & Security Segmentation
VLAN | Purpose | Policy |
---|---|---|
10 | Employees | WPA3-Enterprise + 802.1X (ISE/PAP) |
20 | Guests | Captive Portal + SpeedBoost rate limiting |
30 | IoT Devices | PSK Isolation, internet-only access permitted |
3. Critical Configurations
QoS Marking: Prioritize Video Conferencing (DSCP EF) over other traffic.
5GHz Band Steering: Force dual-band clients to connect to 5GHz (e.g., Aruba's Band Steering).
Roaming Optimization: Enable 802.11k/v/r protocols; set roaming threshold to -70dBm.

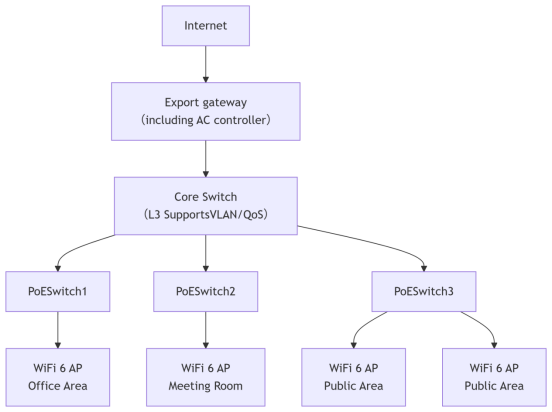

Deployment Diagram
Budget & Implementation
Category | Quantity | Notes |
---|---|---|
SD-WAN Gateway (Controller + Edge Router) | 1 unit | Supports ≥500 concurrent endpoint management & unified configuration, built-in NAT & QoS policies |
Core Gigabit Switch | 1 unit | ≥48 Gigabit Ethernet ports + multiple 10G uplinks; supports VLAN segmentation, link aggregation |
PoE Switch | 3~5 units | Powers APs; select PoE+ (802.3at) or PoE++ (802.3bt) standard based on AP power requirements |
WiFi 6 Wireless AP | 15~25 units | Ceiling/Wall mount type, dual-band, MU-MIMO, Controller (AC) managed |
Ethernet Cable (CAT6/CAT6A Gigabit) | ≥500 meters | Connects APs, switches, PCs, etc.; recommend including redundancy |
RJ45 Connectors | ≥100 units | For terminating cable ends, we recommend including a crimping tool |
Patch Panels / Patch Cables | As per rack count | For orderly connections between the core switch and other equipment |
Network Rack(s) | 1~2 units | For centralized installation of the controller, switches, UPS, etc. |
UPS System | 1 set | Recommended option to ensure network device power during outages |
Installation Materials & Consumables | As needed | Includes cable conduits, cable ties, faceplates, modules, labels, etc. |
Solution Benefits Summary
Dimension | Advantage |
---|---|
Performance | WiFi 6 support, high concurrent users per AP, throughput increased by 40%+ |
Management | Centralized AC configuration & monitoring, unified policies, intelligent channel optimization |
Security | Comprehensive protection: network segmentation, guest isolation, access control |
Scalability | Easily expandable with business growth, simplified maintenance |
User Experience | Uniform signal coverage, fast roaming support, stable endpoint connectivity |
