Why Upgrade Your Laptop Storage?

In 2025, with increasing demands from high-resolution media, large software applications, and data-heavy workflows, running out of storage on your laptop is a common issue. Whether you're a gamer needing space for expansive titles or a professional handling massive files, adding more storage can breathe new life into your device.

This guide focuses on hardware solutions—internal upgrades and external additions—to help you expand your laptop's capacity effectively. We'll cover step-by-step processes, tools, precautions, and top recommendations, optimized for current trends.

Assessing Your Laptop's Upgrade Potential

Before upgrading, determine if your laptop supports storage expansion. Not all models allow internal upgrades—some have soldered drives that can't be replaced. Start by searching your laptop model online with terms like "[Model] storage upgrade guide." Check the storage tab for compatible options such as PCIe or SATA SSDs. This step is crucial to avoid compatibility issues and ensure you're buying the right hardware.

To identify your current storage type without disassembly:

Right-click your drive in "This PC" (Windows), select Properties, and check the Hardware tab.

This helps decide if you can add a secondary drive (e.g., SATA alongside an existing PCIe) or need to replace the primary one.

Internal Storage Upgrades: Replacing or Adding an SSD

Upgrading internally often means replacing your hard disk drive (HDD) or solid-state drive (SSD) with a higher-capacity SSD, which not only adds space but also boosts speed dramatically. SSDs are preferred in 2025 for their faster read/write speeds and reliability over traditional HDDs.

Tools Needed

Precision screwdriver kit (Phillips and Torx heads).

Anti-static wrist strap to prevent electrostatic damage.

Prying tool or trim puller for opening panels.

Optional: Cloning software for data transfer.

Step-by-Step Guide

Backup Your Data: Use an external drive or cloud service to save files. This is non-negotiable to prevent loss.

Power Down and Prepare: Shut off the laptop, unplug it, and remove the battery if possible. Press the power button to discharge residual energy.

Access the Interior: Remove the back panel by unscrewing it (refer to your model's manual for screw locations). Gently pry it open.

Locate and Remove Old Drive: Disconnect the battery from the motherboard first for safety. Find the storage bay, unscrew any holders, and slide out the old drive.

Install New SSD: Insert the new SSD (label up) into the slot or holder, connect it (e.g., to the SATA port), and secure with screws.

Reassemble: Reconnect the battery, replace the panel, and screw it back.

Format the Drive: Boot up, open Disk Management (search for "Create and format hard disk partitions"), initialize the disk (GPT is recommended), create a new volume, format it as NTFS, and assign a drive letter.

Test and Transfer Data: Verify the drive appears in File Explorer and move or clone data as needed.

If your laptop supports multiple drives, you can add without replacing the old one, preserving your OS

External Storage Solutions: Easy and Versatile Alternatives

If internal upgrades aren't feasible (e.g., soldered drives), external hardware provides immediate relief without voiding warranties. These are portable and can be shared across devices.

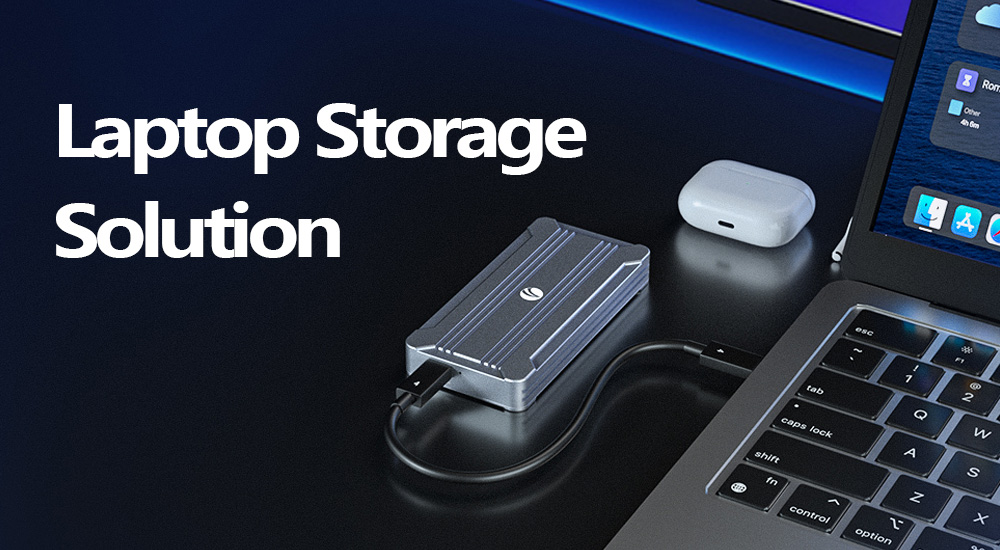

SSD Enclosure

Overview: Connect via USB-C for fast transfers. VCOM's SSD enclosure series supports transfer speeds up to 80Gbps(Thunderbolt 5 Standard).

Set up: Plug the SSD into the enclosure, then connect devices(computer, laptop, pad, or phone), format if needed, and use. No tools required.

USB Flash Drives and SD Cards

USB Drives: Compact and always-connected.

SD Cards: Slot into built-in readers; up to 2TB.

Setup: Insert and access via File Explorer. Ideal for mobility.

Network Attached Storage (NAS)

Overview: Wireless storage for multiple devices. Connect to your router for home network access.

Setup: Follow manufacturer instructions—plug into network, configure via app. No disassembly needed.

Precautions, Tips, and Common Pitfalls

Precautions: Always work in a static-free environment; ground yourself. Check warranty terms—upgrades may void it.

Tips: For Windows users, enable Storage Sense for automatic cleanup. Consider hybrid setups: Internal for OS/apps, external for media. Today, look for SSDs with PCIe 5.0 for future-proofing, though most laptops still use 4.0.

Pitfalls: Mismatched interfaces (e.g., SATA vs. NVMe) can cause failures. Don't force components—gentle handling prevents damage.
